Condition Monitoring System for Rotating Machine Assets

Condition Monitoring System for Rotating Machine Assets

I.      LIFEVIEW

1.    ON-LINE MONITORING

The LIFEVIEW® suite of products provides owners and operators of HV rotating machines with a choice of permanent, online monitoring solutions.

·        LIFEVIEW LIVE is a flexible system with the option of multiple parameter measurement and offering the advantage of immediate and live results

·        LIFEVIEW PDA II is our cost-effective solution for Partial Discharge monitoring - a device focused on 24/7 data collection of partial discharge that can be easily downloaded

·        LIFEVIEW MOBILE is our mobile solution for periodic online Partial Discharge measurements that can be easily transported and deployed at site



    LIFEVIEW LIVE

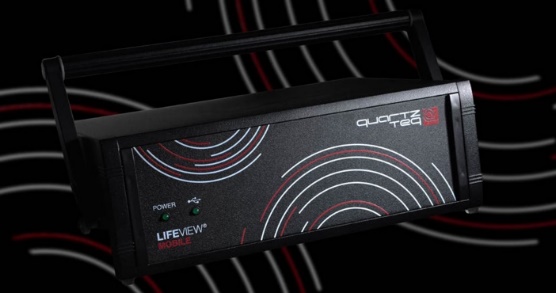

LIFEVIEW MOBILE

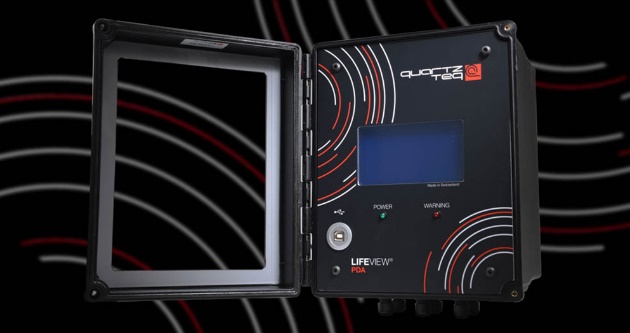

LIFEVIEW PDA



Features

·        24/7 Monitoring

·        Automatic Periodic Measurements

·        Partial Discharge (PD) Trending

·        PD Pattern Graph (With the advanced software version)

·        Additional shaft voltage and air gap magnetic flux modules with trend

·        Remote access via RJ45 Ethernet connection

·        2 Alarm / Warning channels

·        Compatible with all Quartzteq sensors as well as PD couplers from other manufacturers



2.    OFF-LINE MONITORING

The LIFEVIEW® range offers owners and operators of HV rotating electrical assets multiple solutions for offline analysis; for maintenance and period test with partial discharge and tan delta measurements for maintenance and period tests, or acceptable tests by partial discharge and tan delta measurements. Besides the polarity index test, and insulation resistance measurement to evaluate equipment circumstances.

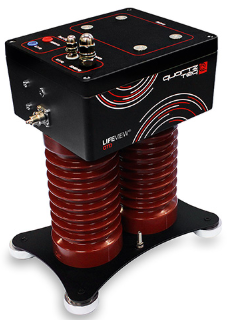

LIFEVIEW QTD



Features

·        Built in PD coupler

·        Rated up to 34kV or 50kV

·        3 switchable measuring ranges

·        Measures Tangents Delta in both grounded and ungrounded modes

·        Ungrounded mode allows process coil testing

·        Automatic report generation

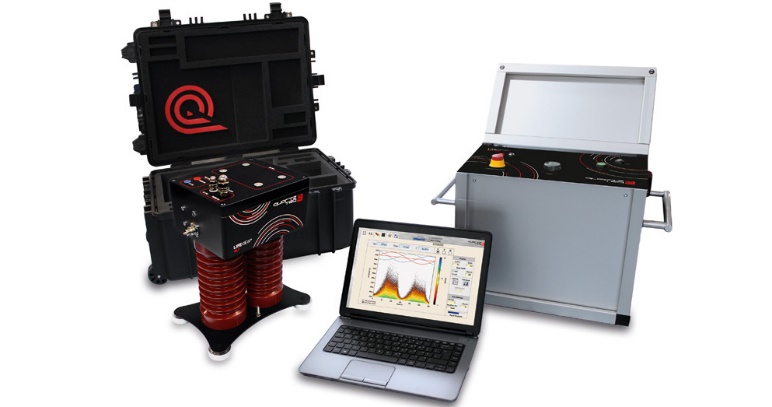

LIFEVIEW QLF



Features

·        34 kV at 0.1 Hz output

·        Reduced HV source footprint, weight <50kg

·        Built in PD coupler

·        Measurement up to 24kV

·        Measures tangents delta in both grounded and ungrounded modes

·        Automatic report generation
